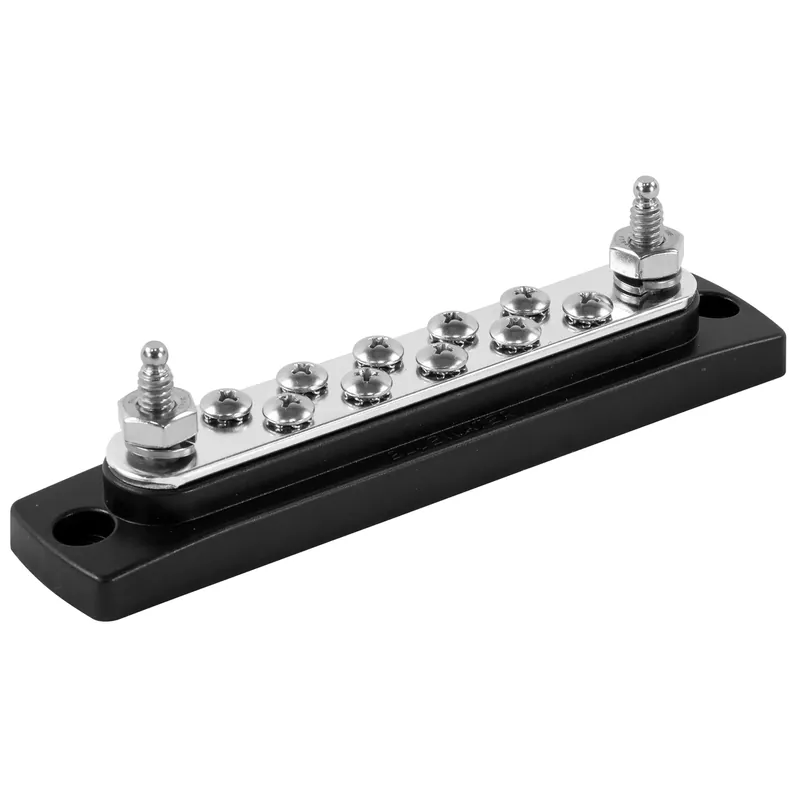

Description
- Constructed of high-quality tin-plated copper and polycarbonate offering durability and anticorrosive properties in a challenging marine environment
- Best for use with standard tinned copper marine wire for minimization of electrolytic corrosion
- Ideal solution for power distribution for your marine electronics
- Equipped with two strong #10-24 studs for secure main wire connection
- Easy installation with (2) separately sold #14 fasteners
- Available in (4) sizes
- 4 Screw Terminals
- Terminal size of 4 x #8-32
- Holds a maximum voltage of 300V / 48VDC
- Continuous rating of 130 Amps AC150 Amps DC
- Separately sold Bus Bar Cover available here
- 5 Screw Terminals
- Terminal size of 5 x #8-32
- Holds a maximum voltage of 300V / 48V DC
- Continuous rating of 100 Amps
- Separately sold Bus Bar Cover available here
- 10 Screw Terminals
- Terminal size of 10 x #8-32
- Holds a maximum voltage of 300V / 48V DC
- Continuous rating of 130 Amps AC150 Amps DC
- Separately sold Bus Bar Cover available here
- 20 Screw Terminals
- Terminal size of 20 x #8-32
- Holds a maximum voltage of 300V / 48V DC
- Continuous rating of 130 Amps AC150 Amps DC
- Separately sold Bus Bar Cover available here
